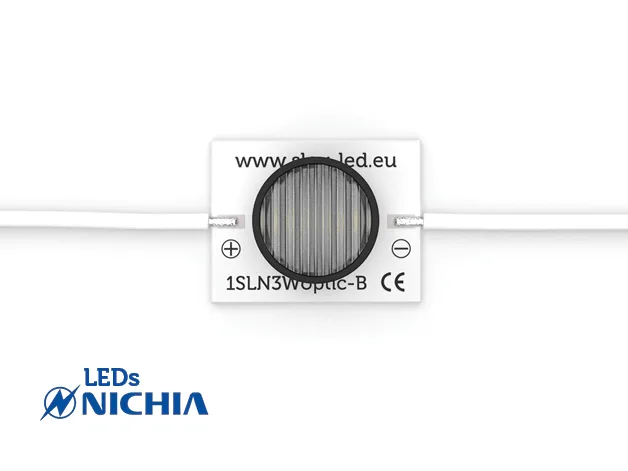

ADVANTAGES: exceptional LED module withhigh luminous flux up to 520 lm and beam angle from 10 to 70°, ideal for edge lighting of advertising panels, top LEDs Nichia, possibility to illuminate advertising panel of height 10 m (lenght is irrelevant) only from the edge sides of the panel
USAGE AREAS: interior/exterior, edge lighting of advertising panels with the thickness from 60 mm and width from 1 up to 10 m (the length is not relevant), LED module with this optics is suitable also for illumination advertising spaces and billboards
DIMENSIONS: 31 x 24 x 13 mm
LIGHT COLOR: white, from 1800 to 6500 K (CRI 70-90+)
POWER: 3,2 W (Power supply 1050mA)
LUMINOUS FLUX: min. 520 lm (by 6500 K and CRI 80)
LUMINOUS EFFICACY: 163 lm/W
BEAM ANGLE: 10° to 70° (with the use of elliptical lense)
IP PROTECTION: IP65 (also applicable in the outdoor environment)
LIFETIME: min. 100 000 lighting hours / L90 / B10
WARRANTY: 5 years or 20 000 lighting hours
CUSTOMIZED PRODUCTION: color temperature from 1800 to 6500 K, CRI 70-90+, beam angle and used optics, number of modules in series, cable length, dimmable
For more information about the module, please refer to the enclosed technical datasheet.
