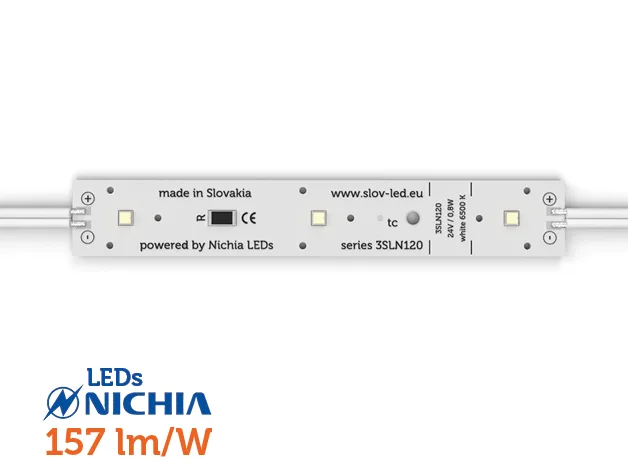

LED MODULE FEATURES: above-standard efficiency of up to 157 lm/W, premium Nichia LEDs, dimmable design, innovative water protection using DOWSIL silicone coating, very good module cooling
LED MODULE APPLICATION: indoor/outdoor use, for illuminating and backlighting medium-sized advertising signs and cut-out graphic elements in advertising panels
DIMENSIONS: 120 x 19.5 x 5.0 mm
LIGHT COLOUR: white, from 1800 to 6500 K (CRI 70–99)
POWER CONSUMPTION: 0.80 W (standard 24 VDC supply, alternative 12 VDC)
LUMINOUS FLUX: 126 lm (at 6500 K and CRI 80+)
LUMINOUS EFFICACY: up to 157 lm/W
BEAM ANGLE: min. 120° (without the use of diffusing lenses)
INGRESS PROTECTION: IP66 (also suitable for outdoor use)
LIFETIME: min. 100,000 operating hours / L90 / B10
WARRANTY: 7 years or 20,000 operating hours
POSSIBLE CUSTOM MODIFICATIONS: white light shade and colour temperature from 1800 to 6500 K, CRI 70–99, possibility of using other Nichia LED types such as Optisolis, Hortisolis, Vitasolis and many others, beam angle and optical lens, number of modules in series, cable length, application of double-sided adhesive tape
